Static Weighbridges

Ashbee Systems Pvt. Ltd. has been at the forefront of Electronic Weighbridge technology for more than three decades.

" This weighbridge is most suitable for temporary sites such as construction sites and chemical industries. "

Mobile Weighbridge Pitless type Composite Weighbridge Pitless type Full Steel Weighbridge

Mobile
Weighbridge

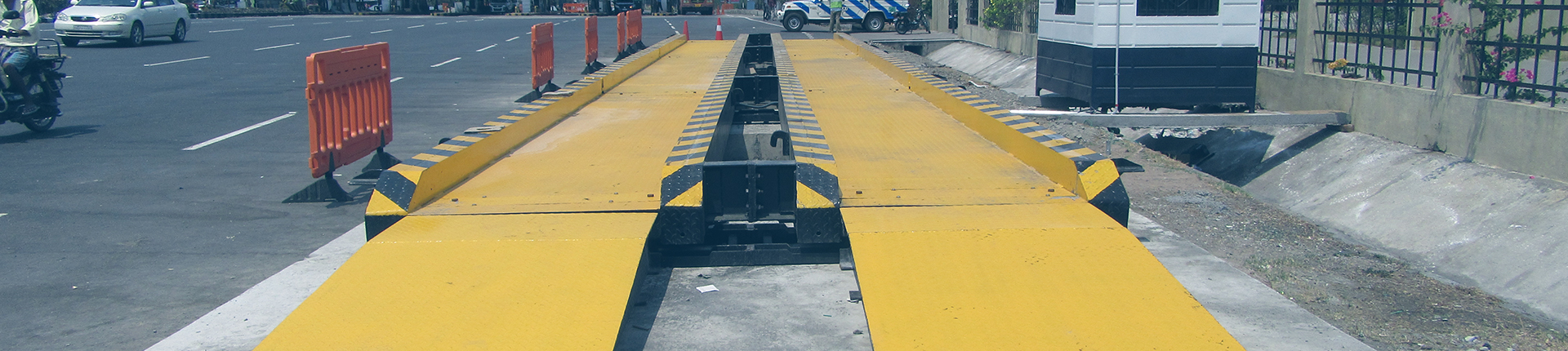

Mobile weighbridge needs no elaborate foundation, just needs smooth hard surface on which the platform & ramp rests. It can be installed on standard PQC which saves a lot of cost and time.

Standard weighbridge foundation and installation takes 2-3 months whereas a mobile weighbridge can be installed in 1-2 days. This mobile weighbridge can be shifted to another site easily in situations for example when number of lanes have to be increased at a Toll Plaza. The modular design helps in easy cost affective transportation and reinstallation. This weighbridge is most suitable for temporary sites such as construction sites. Foundation is replaced by a steel fabricated base frame. Ramps are provided along with the weighbridge.

Total height of weighbridge from floor level is 250mm. All modules including base frame are supplied duly fabricated and welded. The modules are MIG welded, so very robust and sturdy. These are bolted together and assembled at site in few hours.

Size and Capacities

Platform Size

Capacity

No. of Platform modules

No. of Load Cell


8x3m

40t/50t

2

4


12x3m

50t/60t

4

6


16x3m

60t/80t/100t

6

8


18x3m

60t/80t/100t/120t

6

8

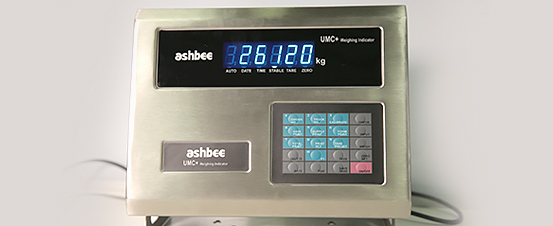

Digital Weight Indicator

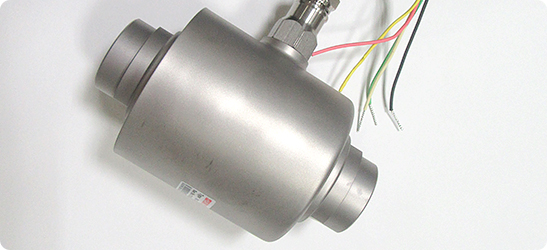

Load Cell

Note : Specifictaions subject to change without notice.
