Weigh-in-Motion Systems

Ashbee Systems Ltd. has been at the forefront of Electronic Weighbridge technology for more than three decades.

Weigh-in-Motion systems are designed to capture and record axle weights and gross vehicle weights as vehicles drive over a measurement site. This makes the weighing process more efficient, and, in the case of commercial vehicles, allows for trucks under the weight limit to bypass static scales or inspection.

Slow Speed Weigh-in-Motion Medium Speed Weigh-in-Motion Vehicle Separator

Medium Speed
Weigh-in-Motion
System

Medium Speed Weigh-in-Motion System can weight up to a speed of 60 km/h. This is based on Hybrid Bending plate technology developed jointly by Applied UK and Ashbee, it is a patented technology specialy designed to suit the electronic Toll Collection lanes in India.

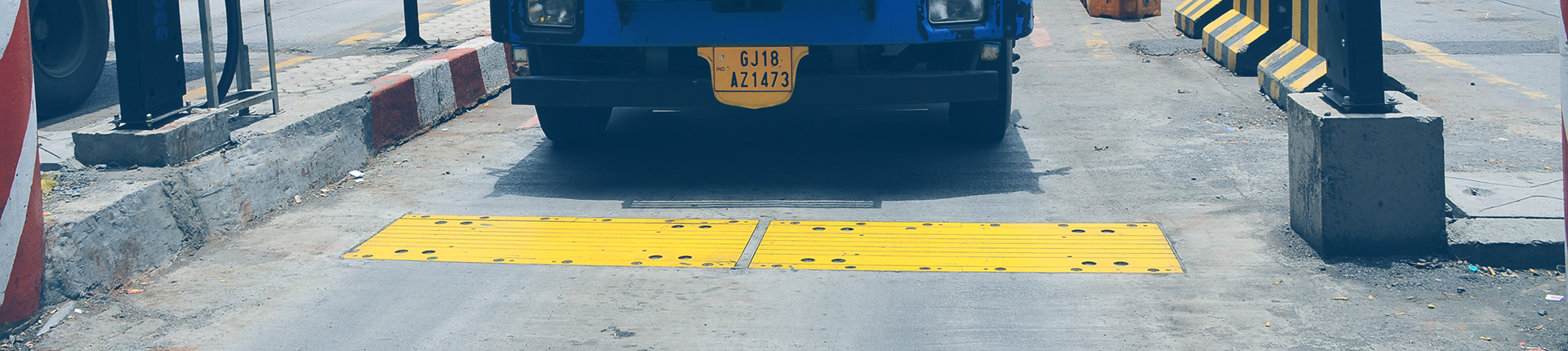

Hybrid bending plate is low profile and sits directly on load cells. This system consists of a base frame that is fixed in the road and a top plate fitted with four double ended sheer beam type load cells. The system consists of 2 such plates installed side by side on the road in level with ground surface to cover the width of lane to weigh individual axle of moving vehicles. So a total of 8 load cells are used per lane. Load cells are mounted between the base frame and the plate.

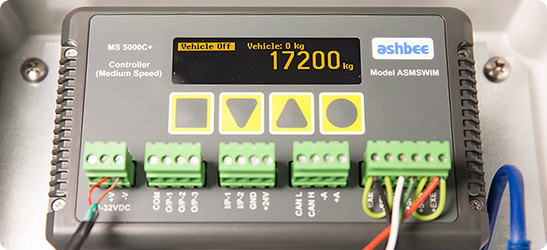

Controller
  • High Speed
  • Bright OLED Display
  • Ethernet / Serial Connectivity
  • High Operational aceuracy
  • IP 67
  • Imported from UK

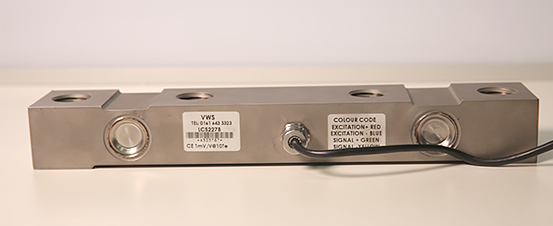

Load Cell
  • Doubled Ended Sheam Beam
  • IP 68
  • Imported from UK

Note : Specifictaions subject to change without notice.

Ashbee is an ISO 9001 : 2015 certified company
